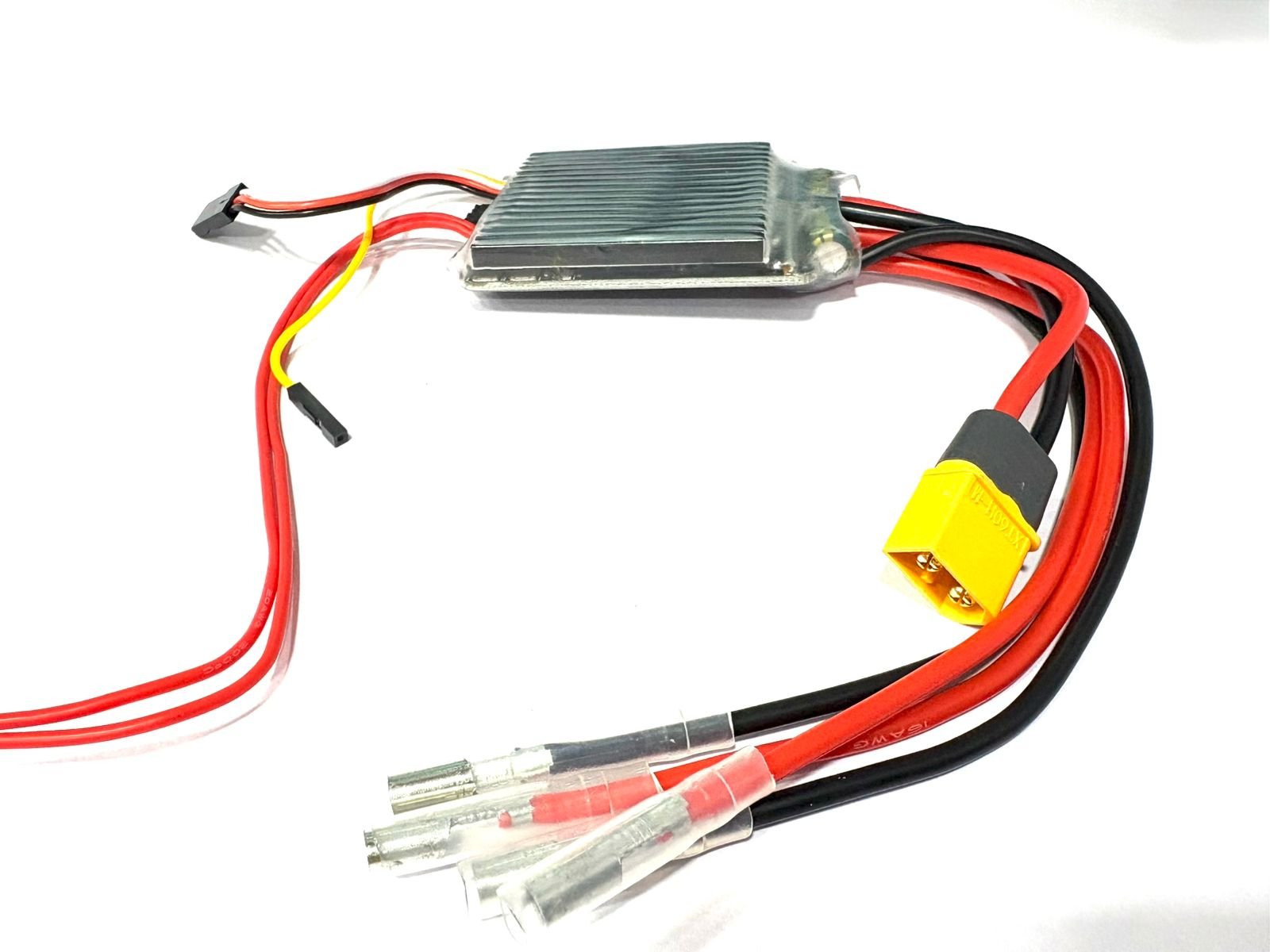

Dual Brushed ESC 80A

Description Dual Brushed ESC 80A Dual Brushed ESC 80A offers a robust and versatile solution for 1/10th and 1/8th scale RC vehicles driven by dual brushed motors. It features two sets of output wires for simultaneously controlling two motors in synchronization, ideal for rock crawlers and off-road vehicles needing balanced power delivery. The ESC’s fully waterproof and dust-proof construction ensures reliable performance in all weather conditions and rugged environments. This ESC includes an efficient switch-mode BEC delivering 6V at 4A to power the receiver and servos reliably. It supports a wide voltage range from 2 to 4S LiPo or 5 to 12S NiMH battery packs. With 15 programmable parameters, users can fine-tune settings such as drag brake rate, brake force, acceleration punch, and PWM frequency for optimal throttle response and braking performance tailored to different vehicles and terrains. Advanced DEO/freewheeling technology enhances throttle linearity and driving feel, while multiple protections like low voltage cutoff, thermal shutdown, and throttle signal loss safety add reliability. The ESC also features a dedicated programming port for quick configuration via a LED program card, maximizing customization convenience. Its compact dimensions and lightweight design with copper heat conductors ensure efficient heat dissipation for sustained high-current performance. Overall, the Dual Brushed ESC is a high-performance, durable ESC tailored for demanding dual-motor RC applications.
